| Battery | |||
| Battery type | LiFePO₄ | ||
| Rated voltage | 512V | ||
| Storage capacity | 51.2KWh | ||
| Working voltage range | 432~568Vdc | ||

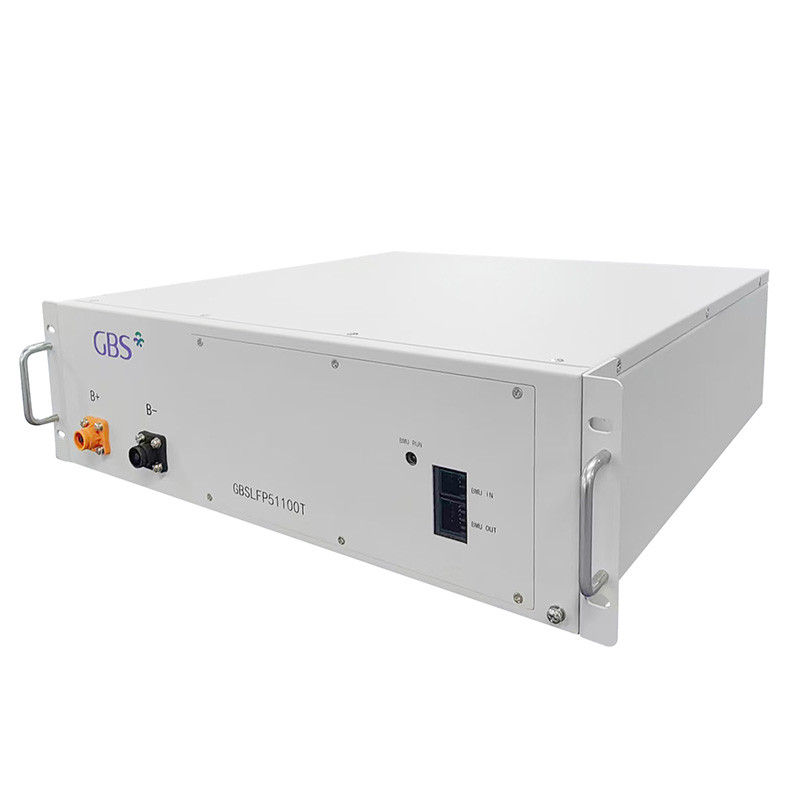

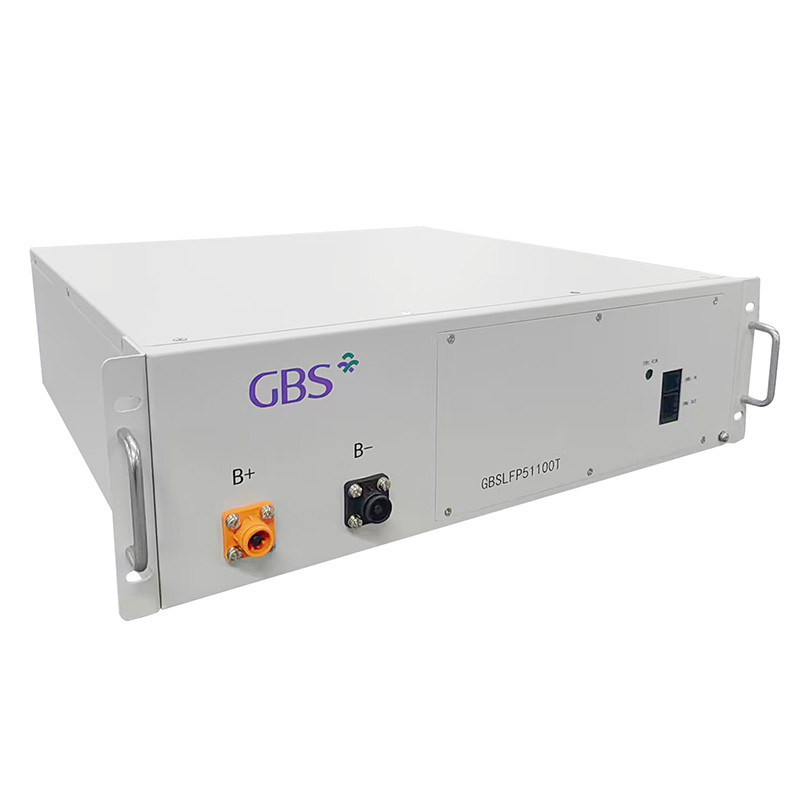

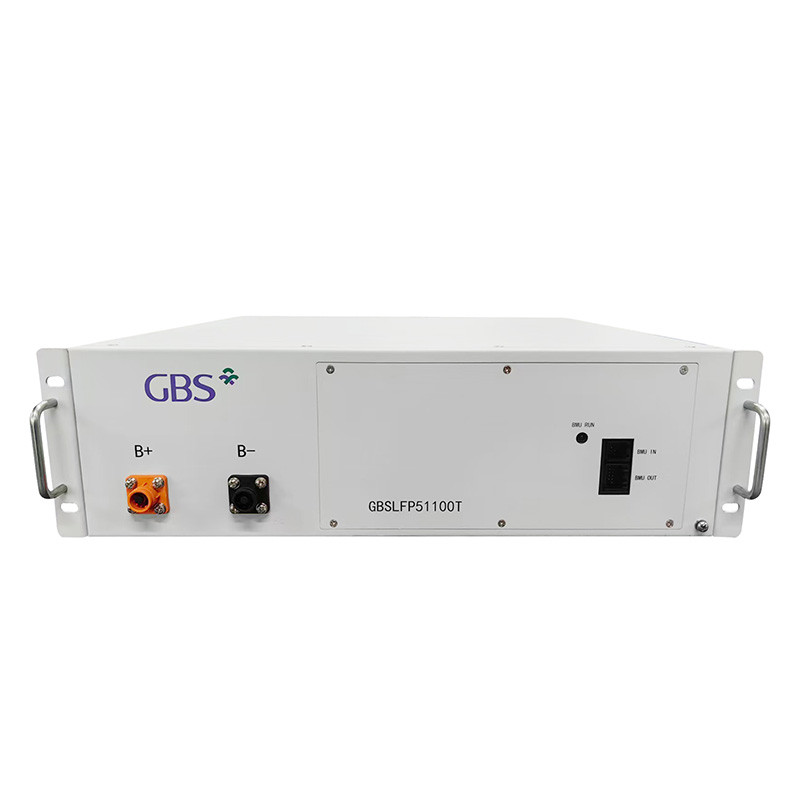

| Number of battery packs | 51.2V100Ah / 1P10S | ||
| Max. charge–discharge current | 100A | ||
| Working temperature range | Charge:0~55℃ / Discharge:-20~65℃ | ||
| Inverter | |||
| Model | 30K | 40K | 50K |
| Max. PV input power | 60KW | 80KW | 100KW |
| Rated PV input voltage | 600Vdc | ||
| Max. PV input voltage | 1000Vdc | ||
| MPPT voltage range | 150~850Vdc | ||
| Max. AC output power | 30KW | 40KW | 50KW |
| Rated AC output voltage | 3/N,PE, 220Vac / 380Vac, 230Vac / 400Vac | ||
| Rated AC output current | 45.6A / 43.3A | 60.8A / 57.7A | 76A / 72.2A |
| Max. PV charge efficiency | 98.5% | ||
| Max. battery charge–discharge efficiency | 97.5% | ||
| Communication | CAN / RS485 / Ethernet / Wi-Fi (optional) / Cellular (optional) / LAN (optional) | ||

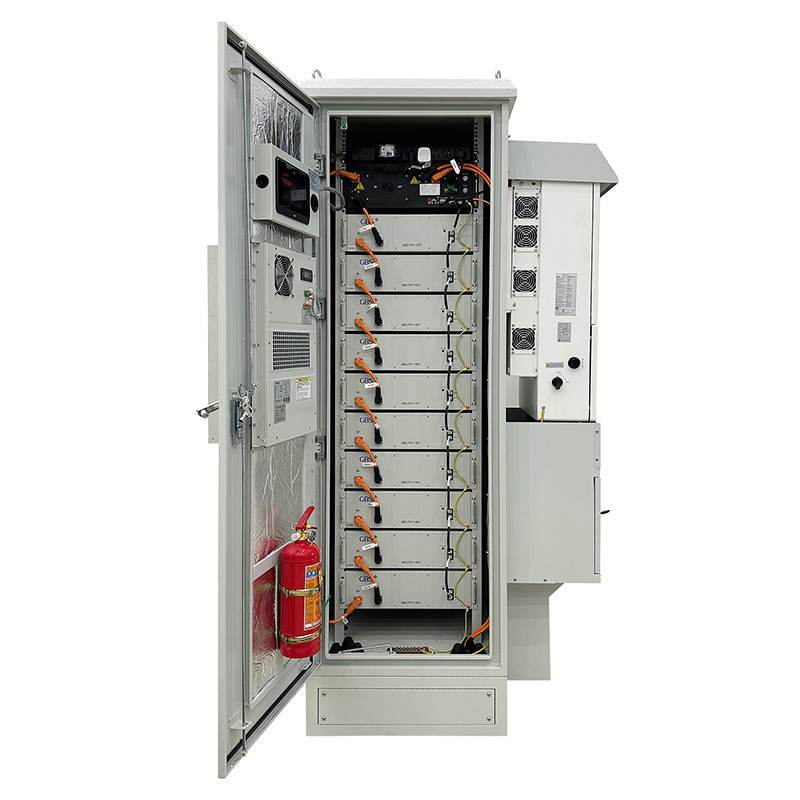

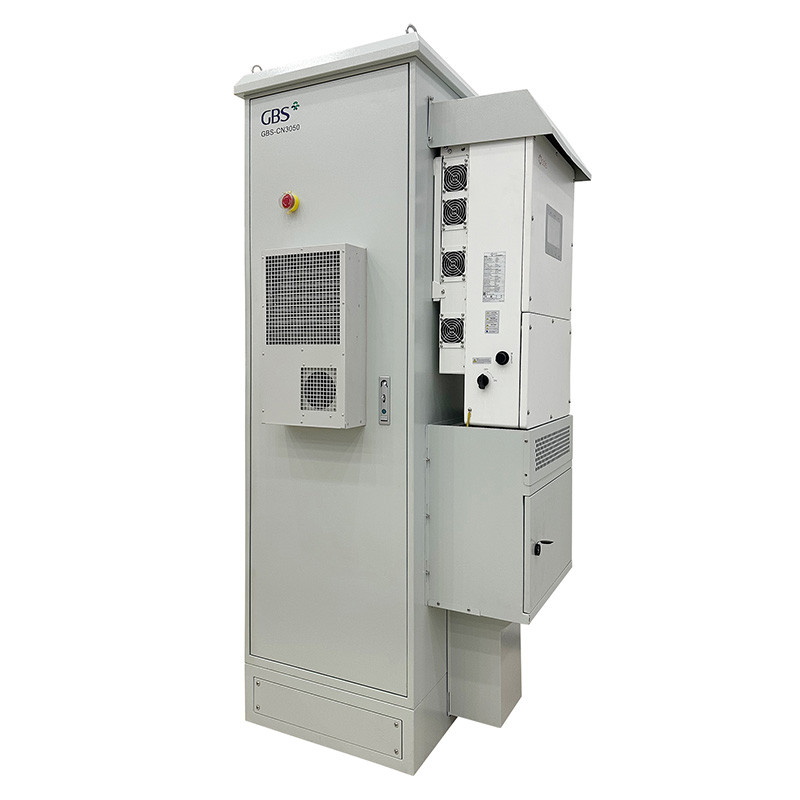

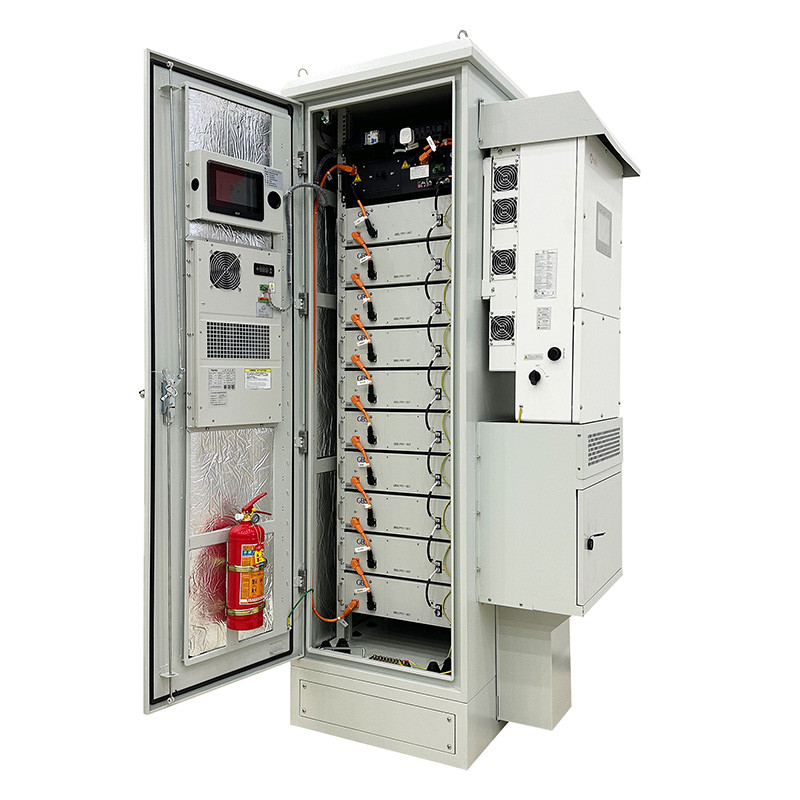

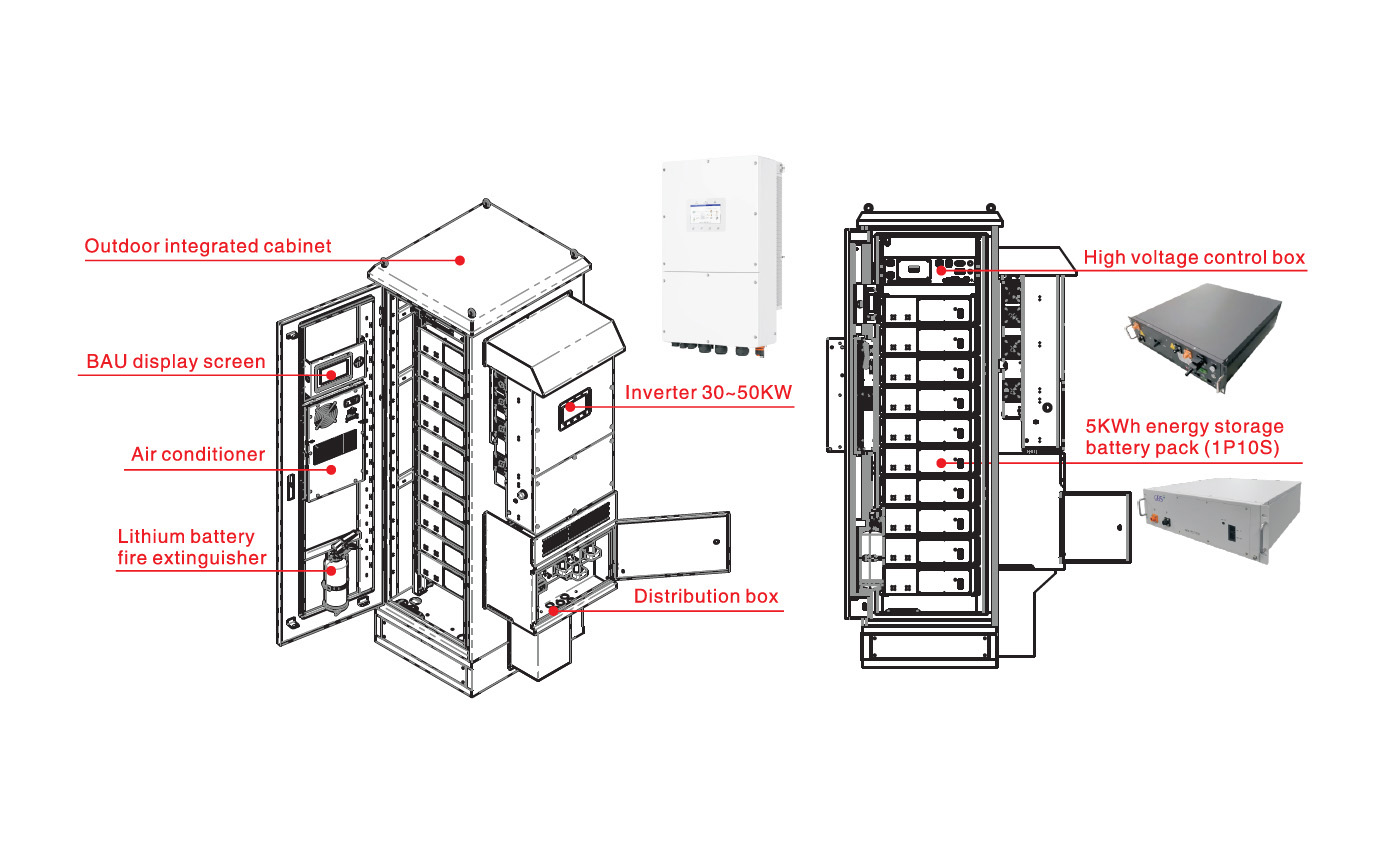

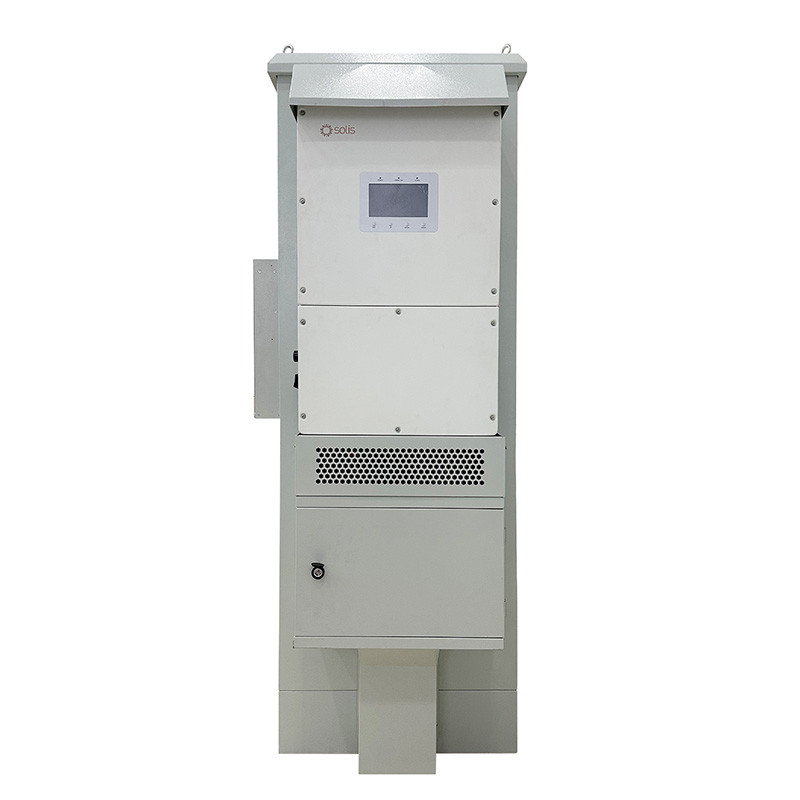

| Outdoor integrated cabinet | |||
| Cooling method | Smart Air Cooling | ||
| IP rating | IP23 | ||
| Size(W*D*H) | 1030*900*2200mm | ||
| System weight | ~750Kg(include cabinet,battery,inverter,air conditioner,fire extinguisher) | ||
